Setting up a Linksys RTP300 or WRTP54G for Acanac

Before you configure the router, you will need an e-mail from Acanac with your account settings. They usually send it to you 2-3 days after you open your account and it will have a subject like "Your Soft Phone order at Acanac is ready". In the e-mail you will find your phone number, the password and the domain (the SIP server).

Plug in the router (power, a computer to one of the Ethernet ports, the modem to the WAN port and a phone into Line 1). Wait about 60 seconds then open a browser and enter the address http://192.168.15.1. The default username is admin and the password is admin.



Click Voice from the top menu to get into the VoIP settings section.



Now click Admin Login on the right then Switch to Advanced view in the middle, to get access to Advanced VoIP settings pages.



Now you're ready to configure the VoIP settings. First, we'll adjust some of the SIP parameters, so click the SIP submenu.



Change the following parameters:
(in the middle of the page)
- RTP Packet Size: 0.020
(at the bottom of the page):
- Substitute VIA Addr: Yes
- STUN Enable: Yes
- STUN Server: stunserver.org

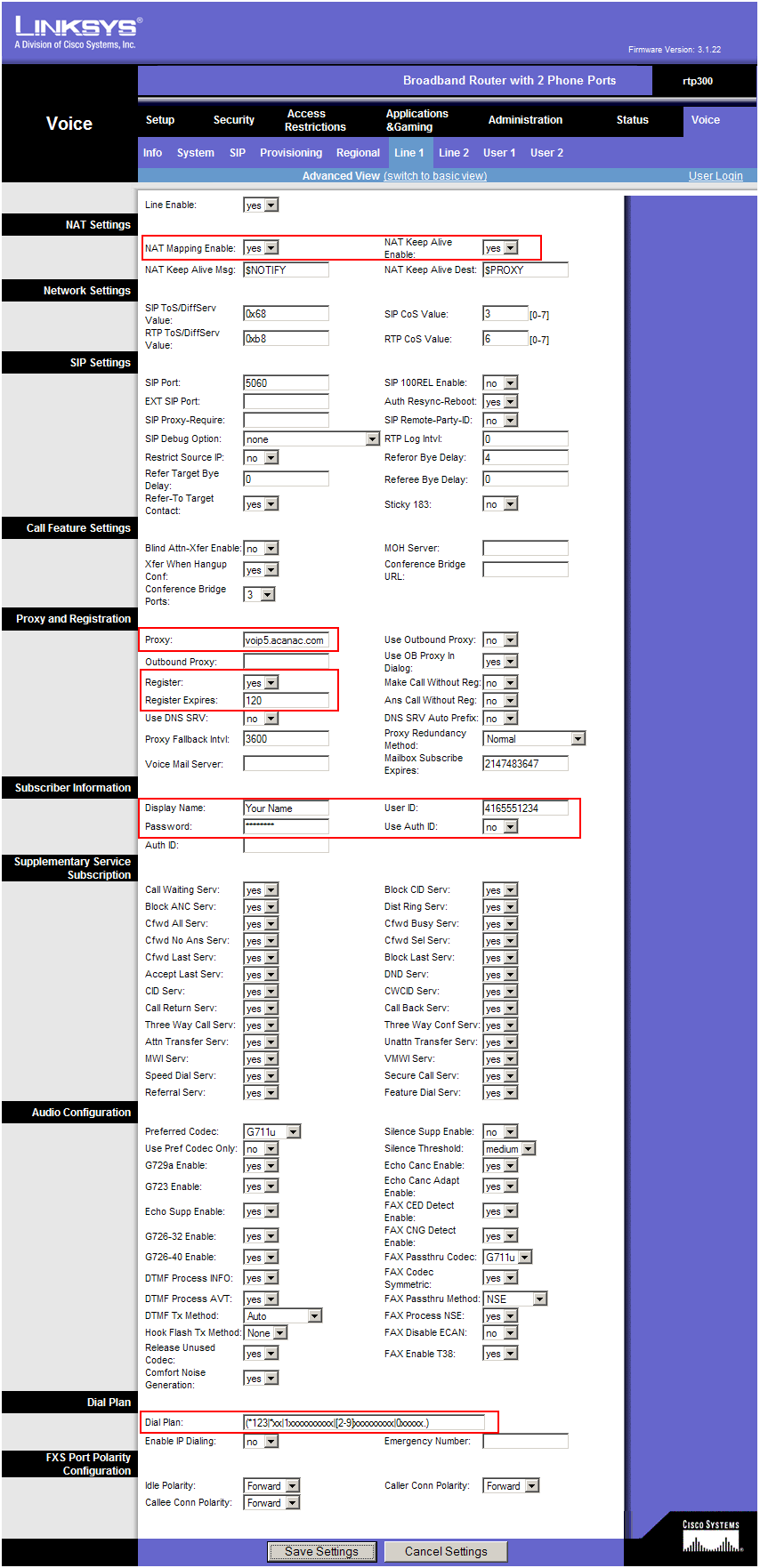

Now click the Line 1 submenu



Enter the following settings:
(at the top of the page)
- NAT Mapping Enable: yes
- NAT Keep Alive Enable: yes
(about half way down on the page)
- Proxy: this is the Domain from the e-mail they sent you with the account settings. Something like 66.49.255.42 or voip5.acanac.com
- Register: yes
- Register Expires: 180
- Display Name: enter your name here
- User ID: this is the number that Acanac gave you, something like 6471234567
- Password: the account password, a combination of letters and numbers (it's in the e-mail they sent you with the softphone configuration)
- Dial Plan: use the following string (including parentheses)
(*123|*xx|1xxxxxxxxxx|[2-9]xxxxxxxxx|0xxxxx.)

That is all, click Save Settings at the bottom to save all the changes. The adapter will reboot and after 2-3 minutes you should get dial tone and should be able to place and receive calls.
