Setting up a Motorola VT2x42 for

This page discusses the VoIP settings for the VT2x42 family of VoIP routers. For the router settings, please consult the user manuals: VT2142 VT2442 VT2542

Before you start configuring the adapter, make sure you have the following settings for your SIP account:
- SIP Server address (sometimes called SIP Proxy)
- SIP User ID (in most cases this is the phone number)
- The password for the SIP account
You can obtain these settings by logging in to the portal.

Connect all the cables: power cord, the blue WAN port to your modem (or router), your PC to one of the yellow LAN ports and a phone into the green Phone 1 port. Wait a few seconds for the router to power up, then open a web browser and type
Login with username Admin and blank password

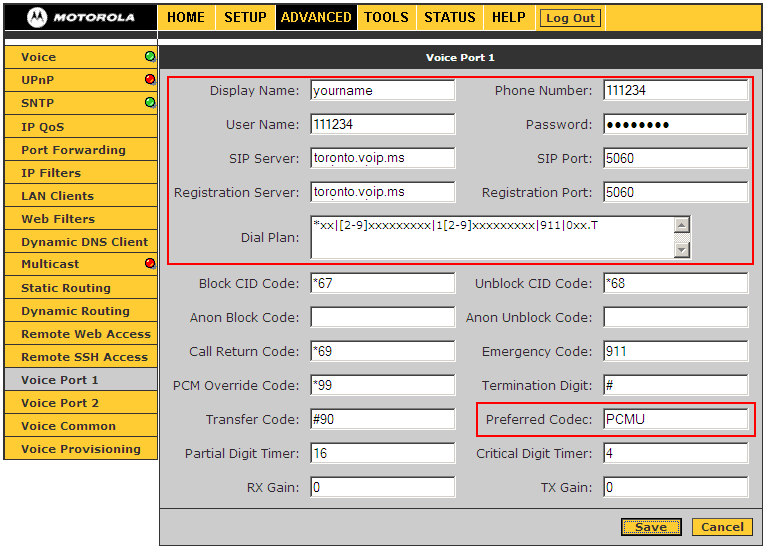

Click Advanced on the top menu, then Voice Port 1 on the left

Enter the following settings:
- Display name: can be anything, you can put your name here
- Phone Number: enter your 6 digit account number
- User Name: enter your 6 digit account number
- Password: your SIP password
- SIP Server: the SIP server that corresponds to the one you selected under DID Point of Presence (for example for the Toronto server)
- Registration Server: same as the Proxy Server
- SIP Port: 5060
- Registration Port: 5060
- Dial Plan: copy and paste the following string:

If you're having issues dialing DTMF digits (when using calling cards, dialing phone extensions, etc) go to the Advanced on the top menu, then Voice Common on the left:

Try all the values between 1 and 4 for the DTMF Mode setting.

To factory reset the adapter

Go to the Tools menu at the top and then Restore Defaults on the left. Check the boxes that apply (Provisioned Parameters to reset the VoIP settings, Non-Provisioned Parameters to reset the router settings) and click Restore Defaults
